    SPARK GENERATOR
    CX2ZT
    CX4ZT
    CX6ZT
    CX8ZT

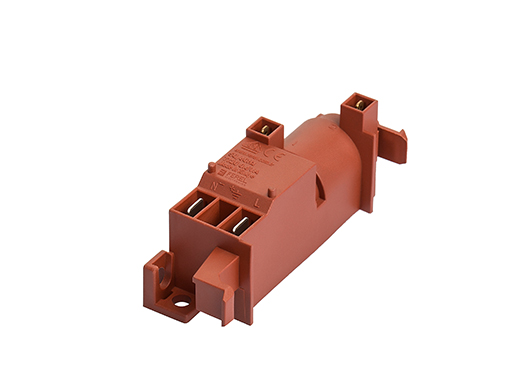

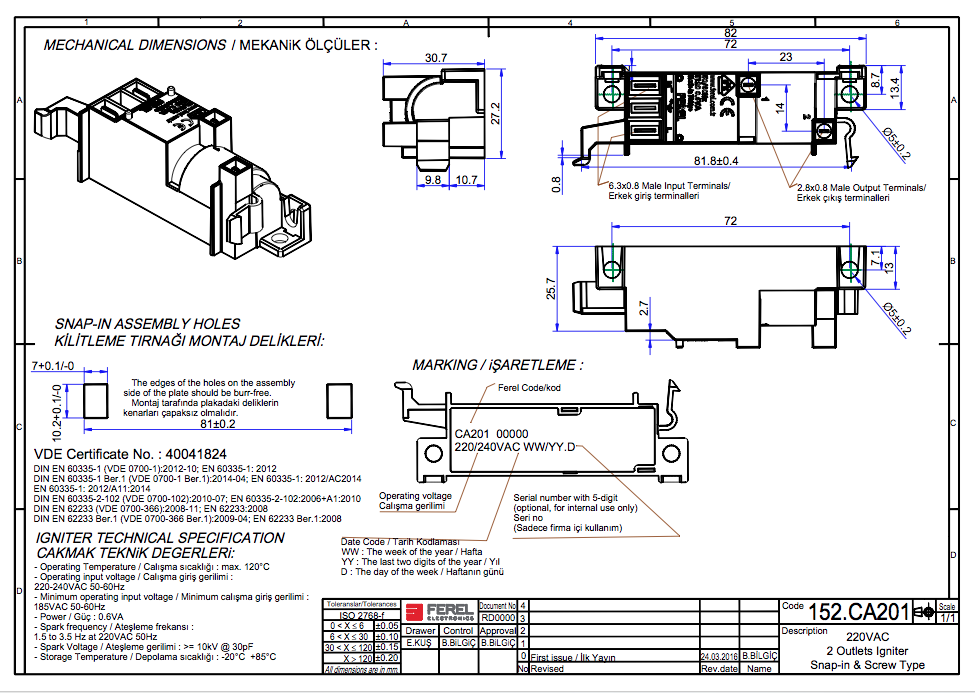

      MODEL CX2ZT
      Output number :
      2
      Certificates:
      VDE, UL, AGA
      Incombustibility Type:
      UL94-V0
      Compatible with RoHS, REACH
      Input terminals:
      6.3 x 0.8 jut terminal
      Output terminals:
      2.8 x 0.8 jut terminal
      Ignition Type:
      Multi
      Leaping distance:
      2.75 - 4.00 mm (6mm maximum)
      Ignition frequency:
      Standart 1.5 - 3.5 Hz
      (on demand 4Hz, 8Hz& 14Hz maximum)
      Working life:
      5.000.000 spark
      Power:
      0.6VA
      Supply voltage (AC):
      110 / 120 / 220 / 240 VAC 50/60Hz
      Supply voltage (DC/battery):
      1.5VDC, 12VDC (on demand 3, 6, 9, 24VDC)
      Minimum operating voltage:
      185VAC
      @ 220VAC
      90VAC
      @ 110VAC
      Output voltage:
      20kV
      Working temperature range:
      0℃ - 120℃
      Absorbent:
      %95 @ 40℃
      Storage temperature:
      -20℃ -85℃

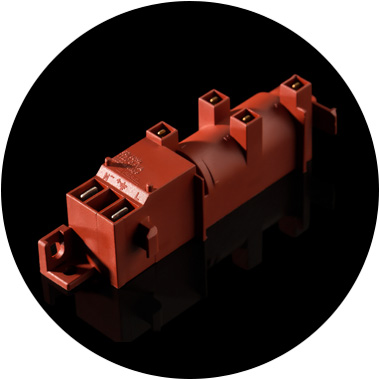

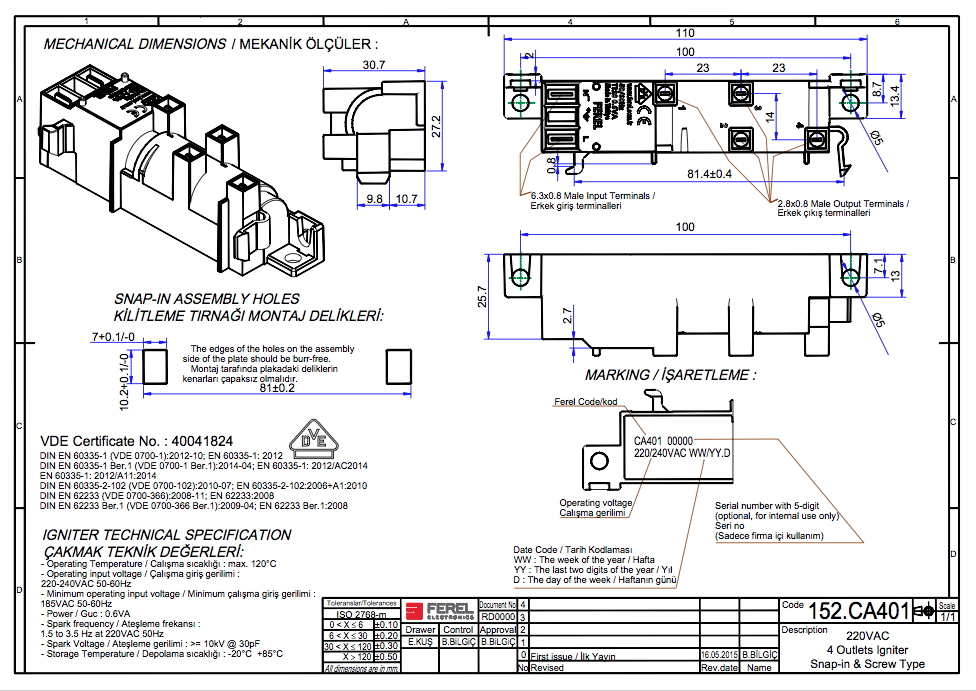

        MODEL CX4ZT
        Output number:
        4
        Certificates:
        VDE, UL, AGA
        Incombustibility Type:
        UL94-V0
        Compatible with RoHS, REACH
        Input terminals:
        6.3 x 0.8 jut terminal
        Output terminals:
        2.8 x 0.8 jut terminal
        Ignition Type:
        Multi
        Leaping distance:
        2.75 - 4.00 mm (6mm maximum)
        Ignition frequency:
        Standart 1.5 - 3.5 Hz
        (on demand 4Hz, 8Hz, 14Hz maximum)
        Working life:
        5.000.000 spark
        Power:
        0.6VA
        Supply voltage (AC):
        110 / 120 / 220 / 240 VAC 50/60Hz
        Supply voltage (DC/battery):
        1.5VDC, 12VDC (on demand 3, 6, 9, 24VDC)
        Minimum operating voltage:
        185VAC
        @ 220VAC
        90VAC
        @ 110VAC
        Output voltage:
        20kV
        Working temperature range:
        0℃ - 120℃
        Absorbent:
        %95 @ 40℃
        Storage temperature:
        -20℃ -85℃

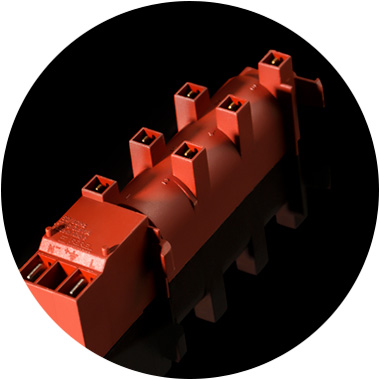

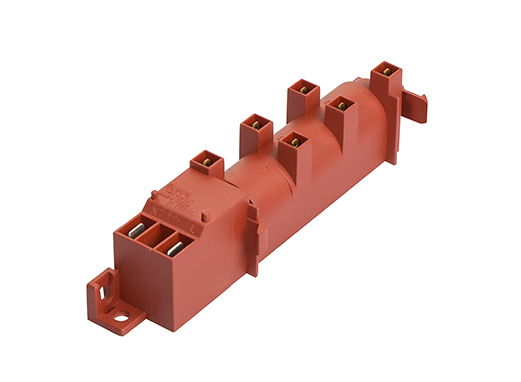

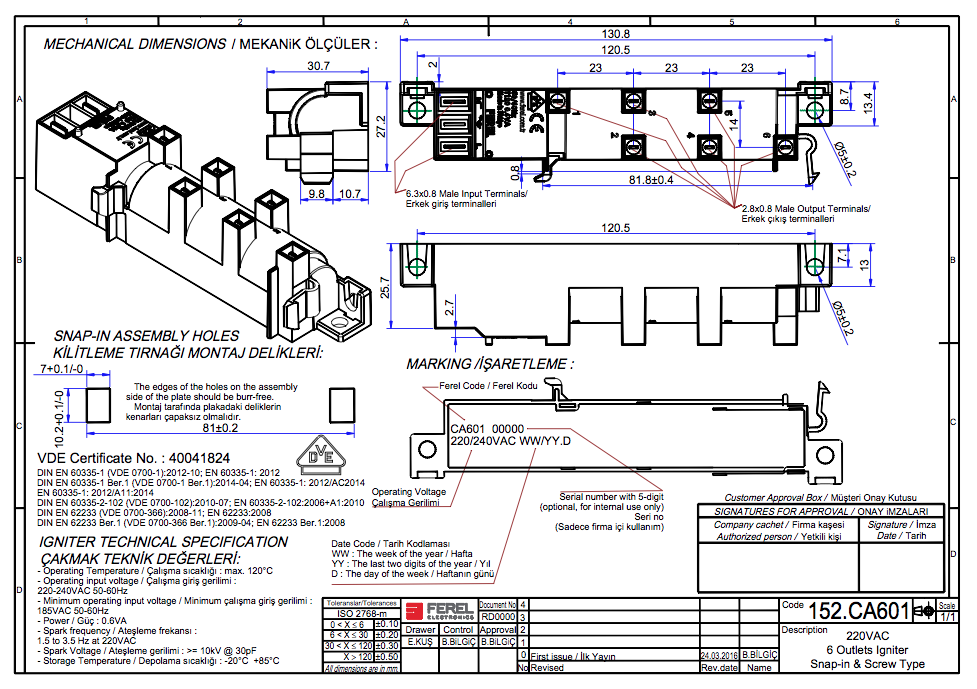

          MODEL CX6ZT
          Output number:
          6
          Certificates:
          VDE, UL, AGA
          Incombustibility Type:
          UL94-V0
          Compatible with RoHS, REACH
          Input terminals:
          6.3 x 0.8 jut terminal
          Output terminals:
          2.8 x 0.8 jut terminal
          Ignition Type:
          Multi
          Leaping distance:
          2.75 - 4.00 mm (6mm maximum)
          Ignition frequency:
          Standart 1.5 - 3.5 Hz
          (on demand 4Hz, 8Hz, 14Hz maximum)
          Working life:
          5.000.000 spark
          Power:
          0.6VA
          Supply voltage (AC):
          110 / 120 / 220 / 240 VAC 50/60Hz
          Supply voltage (DC/battery):
          1.5VDC, 12VDC (on demand 3, 6, 9, 24VDC)
          Minimum operating voltage:
          185VAC
          @ 220VAC
          90VAC
          @ 110VAC
          Output voltage:
          20kV
          Working temperature range:
          0℃ - 120℃
          Absorbent:
          %95 @ 40℃
          Storage temperature:
          -20℃ -85℃

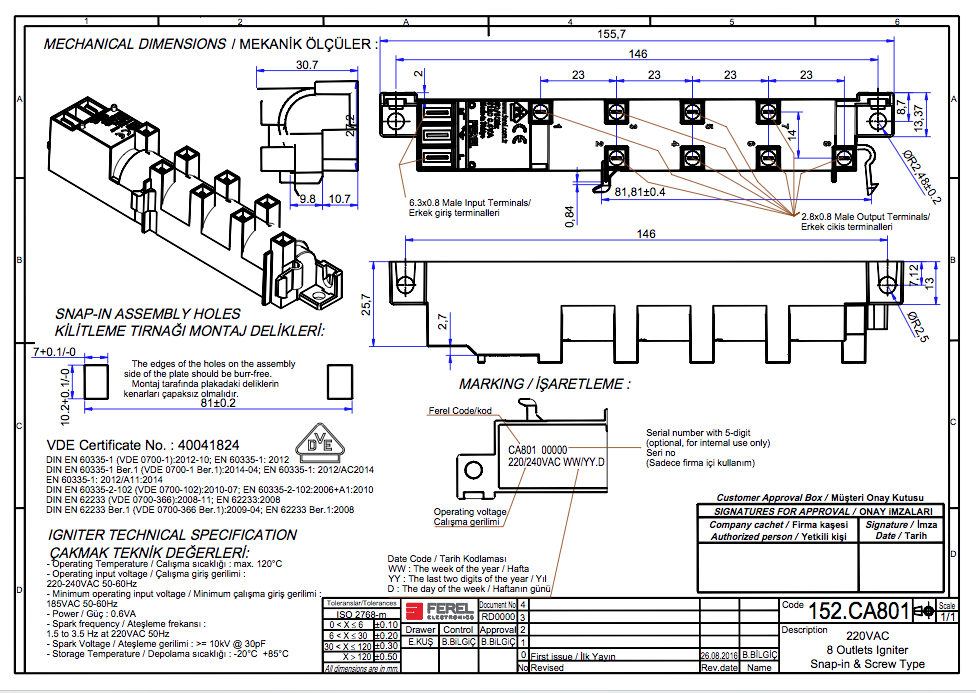

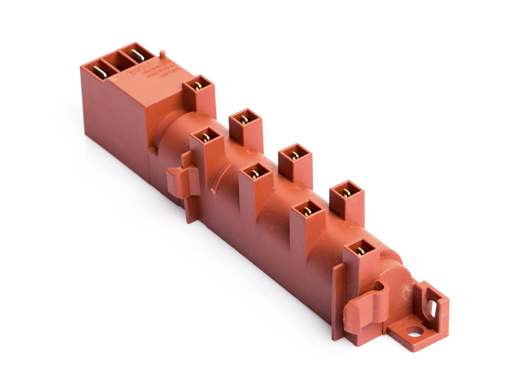

            MODEL CX8ZT
            Output number:
            8
            Certificates:
            VDE, UL, AGA
            Incombustibility Type:
            UL94-V0
            Compatible with RoHS, REACH
            Input terminals:
            6.3 x 0.8 jut terminal
            Output terminals:
            2.8 x 0.8 jut terminal
            Ignition Type:
            Multi
            Leaping distance:
            2.75 - 4.00 mm (6mm maximum)
            Ignition frequency:
            Standart 1.5 - 3.5 Hz
            (on demand 4Hz, 8Hz, 14Hz maximum)
            Working life:
            5.000.000 spark
            Power:
            0.6VA
            Supply voltage (AC):
            110 / 120 / 220 / 240 VAC 50/60Hz
            Supply voltage (DC/battery):
            1.5VDC, 12VDC (on demand 3, 6, 9, 24VDC)
            Minimum operating voltage:
            185VAC
            @ 220VAC
            90VAC
            @ 110VAC
            Output voltage:
            20kV
            Working temperature range:
            0℃ - 120℃
            Absorbent:
            %95 @ 40℃
            Storage temperature:
            -20℃ -85℃

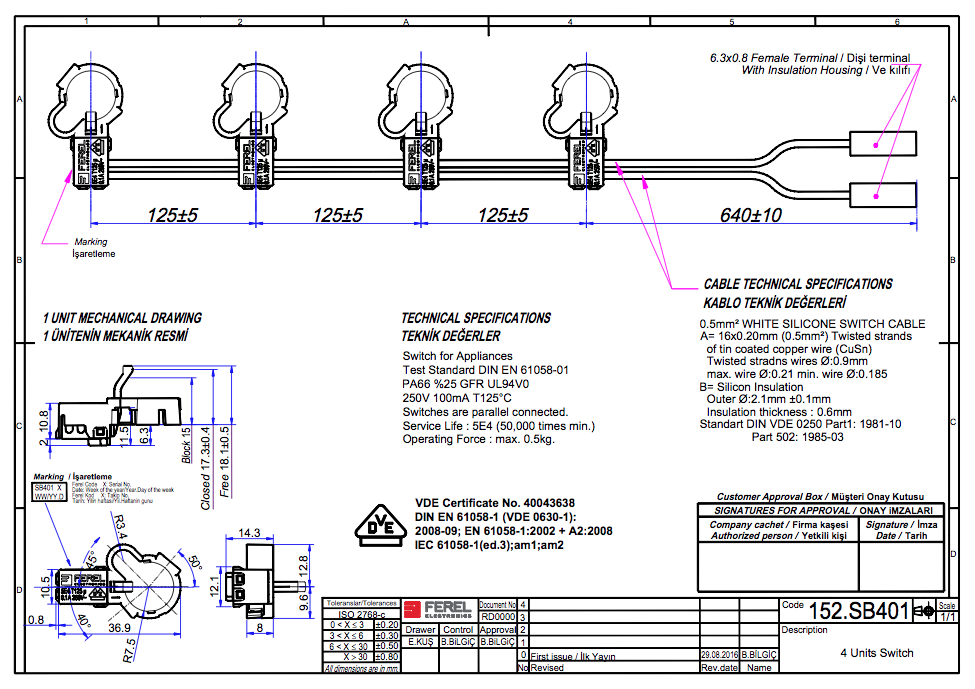

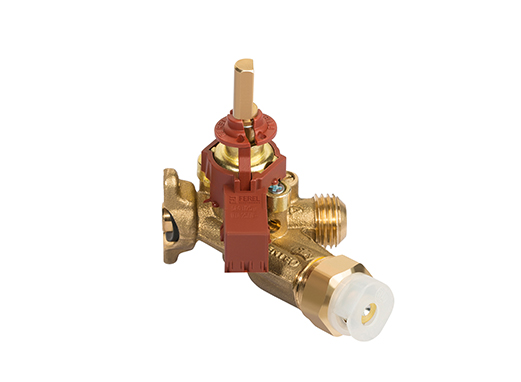

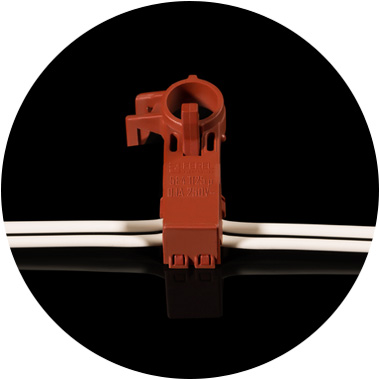

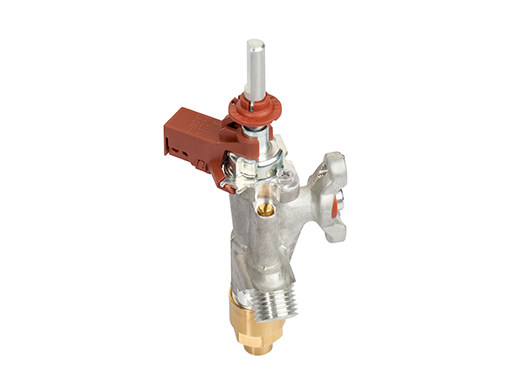

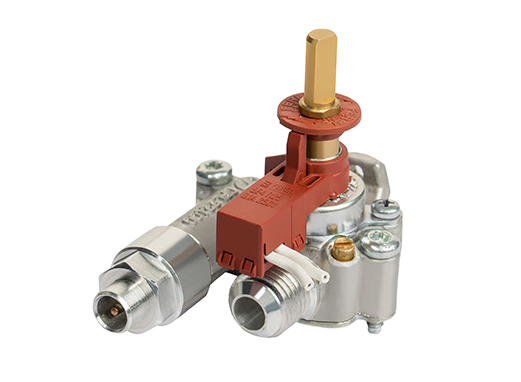

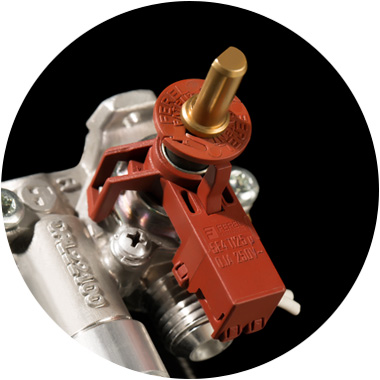

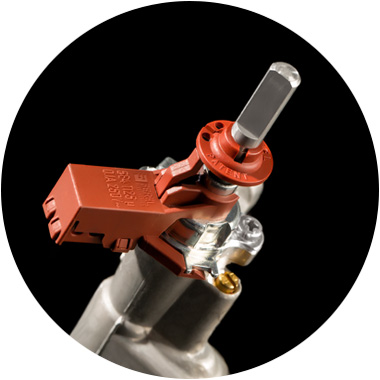

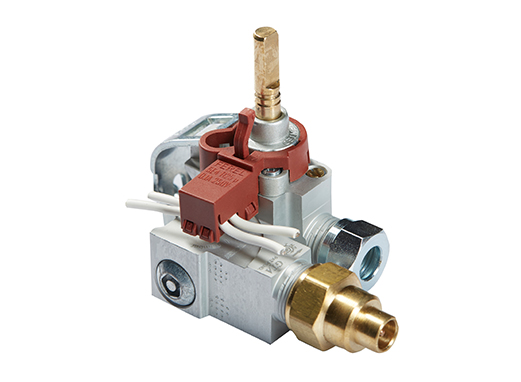

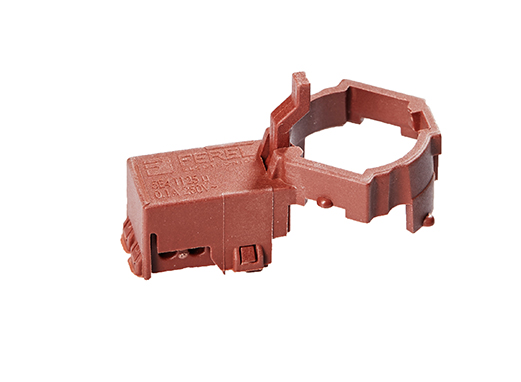

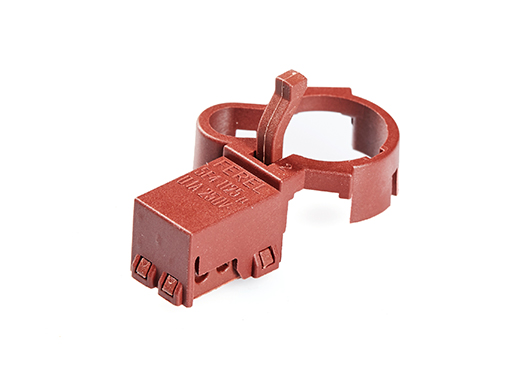

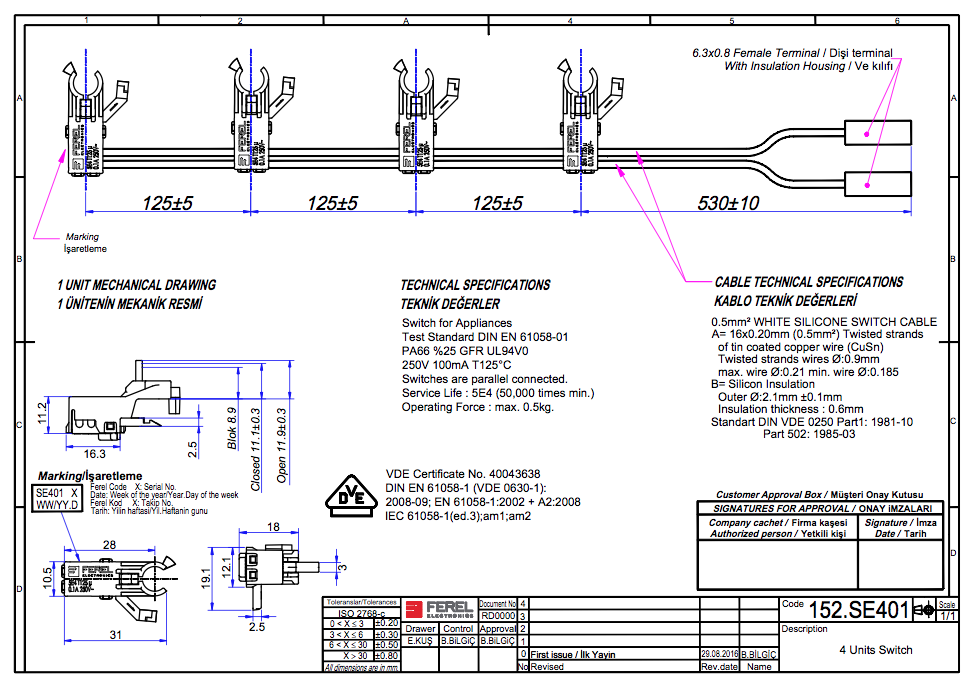

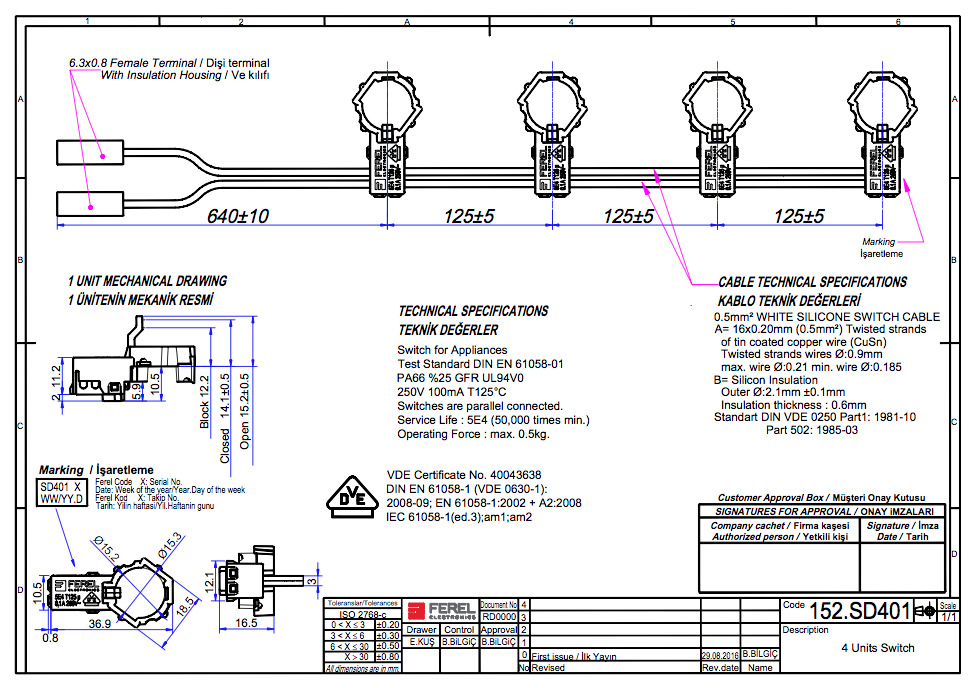

            SWITCH HARNESS
            SAYZT
            SBYZT
            SCYZT
            SDYZT
            SEYZT

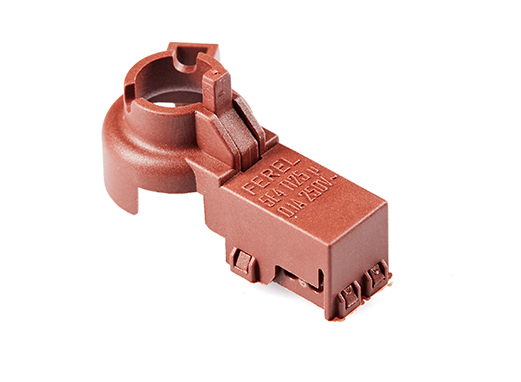

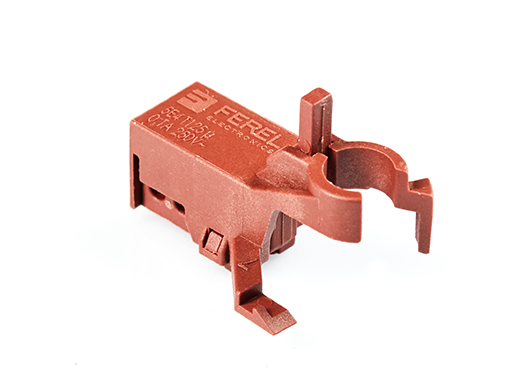

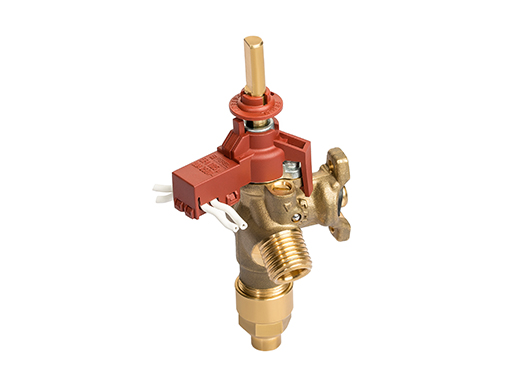

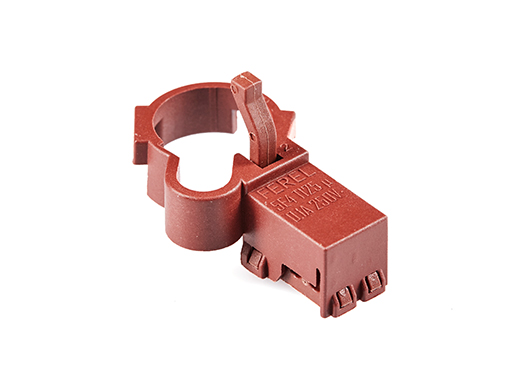

              MODEL SAYZT
              Push button type
              Compatible with CAL 22100
              Compatible shim with Ø6 or Ø8 axle
              Key unites connected in parallel (9 pcs maximum)
              Cables may output in both directions
              VDE certificate

              Operating voltage:
              250V
              Operating current:
              0.2A (maksimum)
              Service time:
              50.000 pcs (minimum)

              Silicone cable, outer diameter: Ø2.1mm, tin plated copper conductor
              6.3 x 0.8 groove terminal and cover

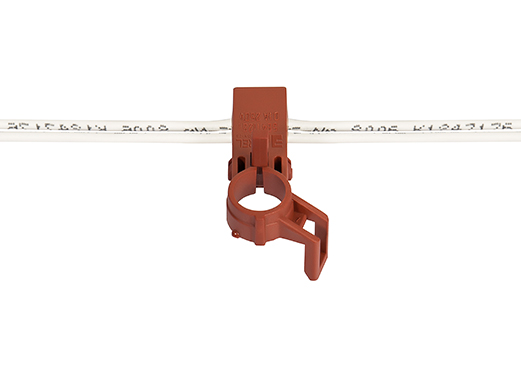

                MODEL SBYZT
                Push button type
                Compatible shim with Ø6 or Ø8 axle
                Key unites connected in parallel (9 pcs maximum)
                Cables may output in both directions
                VDE certificate

                Operating voltage:
                250V
                Operating current:
                0.2A (maksimum)
                Service time:
                50.000 pcs (minimum)

                Silicone cable, outer diameter: Ø2.1mm, tin plated copper conductor
                6.3 x 0.8 groove terminal and cover

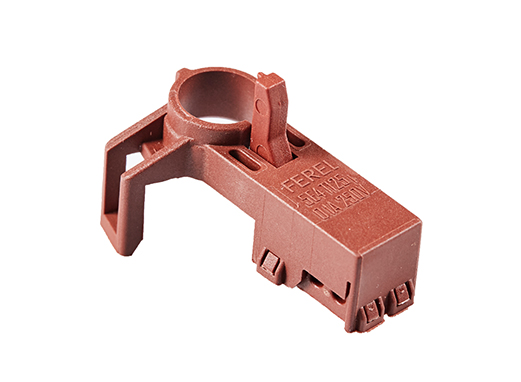

                  MODEL SCYZT
                  Push button type
                  Compatible shim with Ø6 or Ø8 axle
                  Key unites connected in parallel (9 pcs maximum)
                  Cables may output in both directions
                  VDE certificate

                  Operating voltage:
                  250V
                  Operating current:
                  0.2A (maksimum)
                  Service time:
                  50.000 pcs (minimum)

                  Silicone cable, outer diameter: Ø2.1mm, tin plated copper conductor
                  6.3 x 0.8 groove terminal and cover
                    MODEL SDYZT
                    Push button type
                    Compatible shim with Ø6 or Ø8 axle
                    Key unites connected in parallel (9 pcs maximum)
                    Cables may output in both directions
                    VDE certificate

                    Operating voltage:
                    250V
                    Operating current:
                    0.2A (maksimum)
                    Service time:
                    50.000 pcs (minimum)

                    Silicone cable, outer diameter: Ø2.1mm, tin plated copper conductor
                    6.3 x 0.8 groove terminal and cover
                      MODEL SEYZT
                      Push button type
                      Compatible with CAL 20703
                      Compatible shim with Ø6 or Ø8 axle
                      Key unites connected in parallel (9 pcs maximum)
                      Cables may output in both directions
                      VDE certificate

                      Operating voltage:
                      250V
                      Operating current:
                      0.2A (maksimum)
                      Service time:
                      50.000 pcs (minimum)

                      Silicone cable, outer diameter: Ø2.1mm, tin plated copper conductor
                      6.3 x 0.8 groove terminal and cover

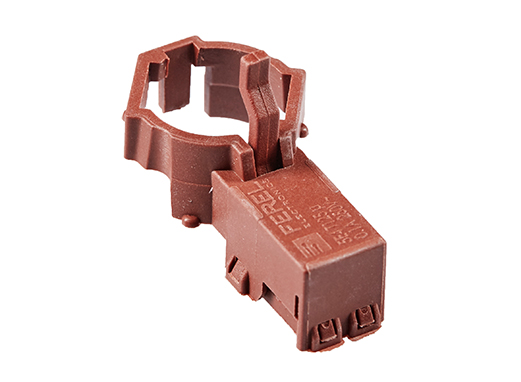

                        MODEL SFYZT
                        Push button type
                        Compatible with 1750X
                        Compatible shim with Ø6 or Ø8 axle
                        Key unites connected in parallel (9 pcs maximum)
                        Cables may output in both directions
                        VDE certificate

                        Operating voltage:
                        250V
                        Operating current:
                        0.2A (maksimum)
                        Service time:
                        50.000 pcs (minimum)

                        Silicone cable, outer diameter: Ø2.1mm, tin plated copper conductor
                        6.3 x 0.8 groove terminal and cover

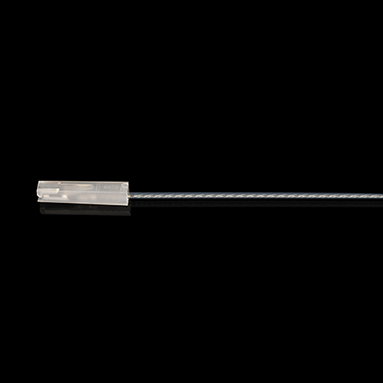

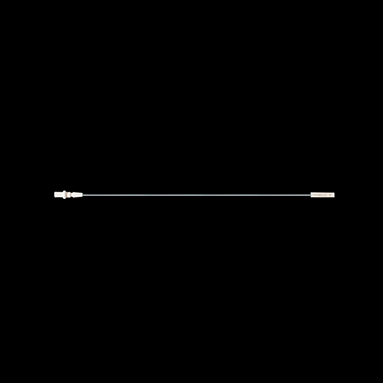

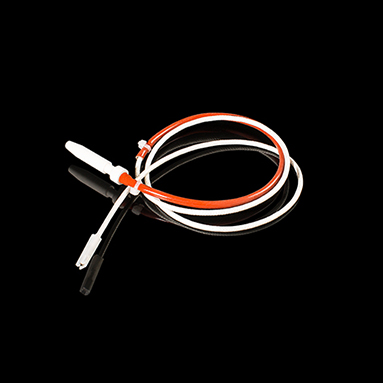

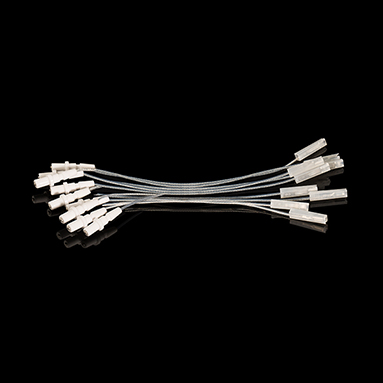

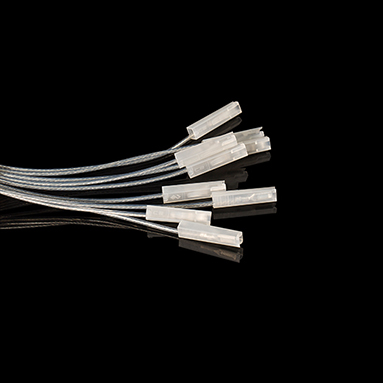

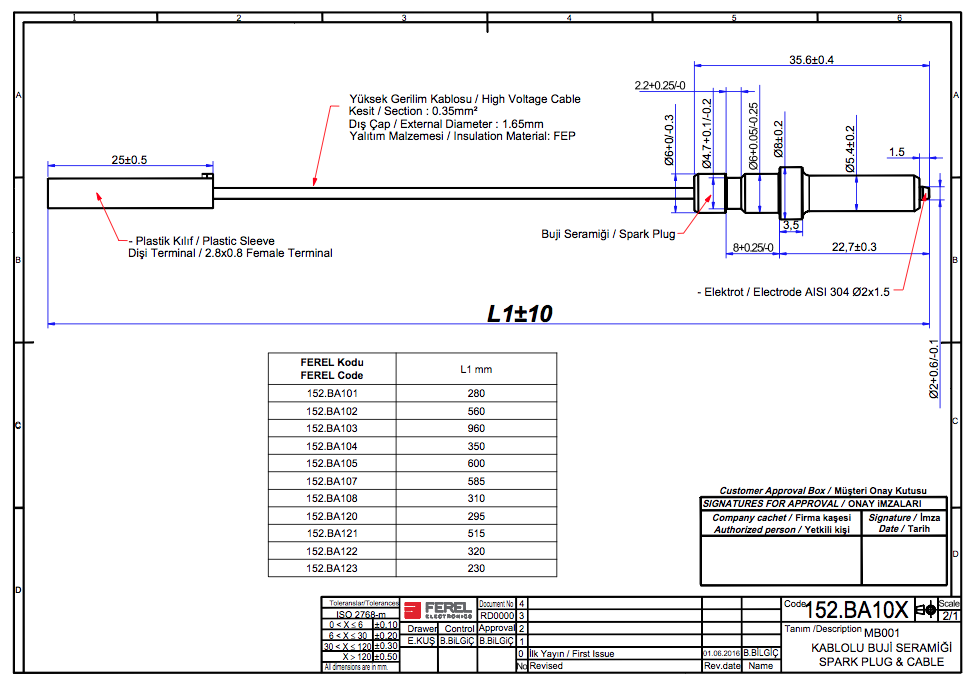

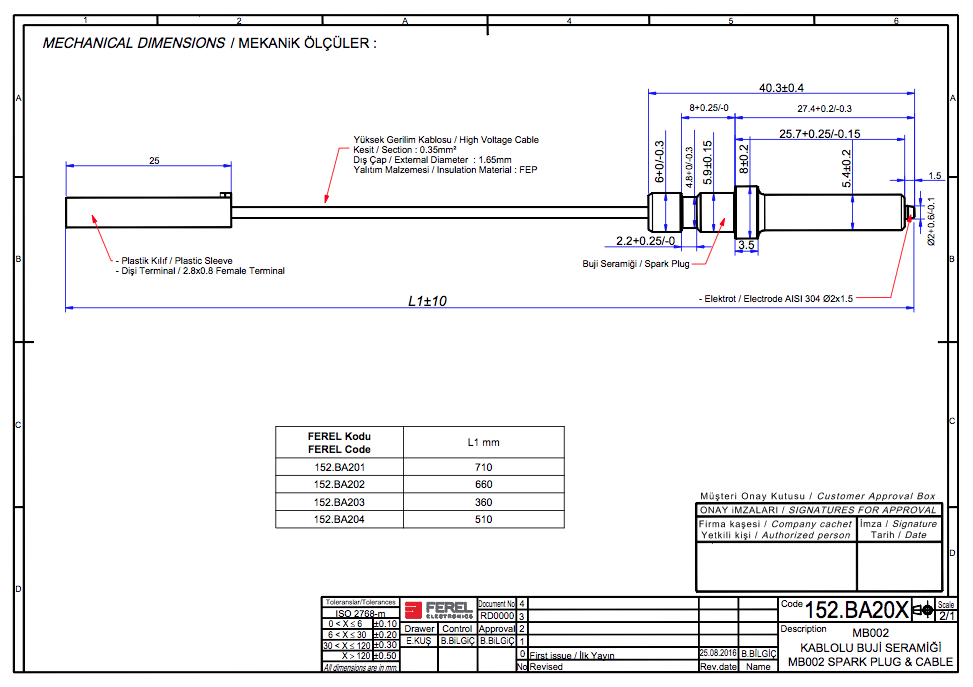

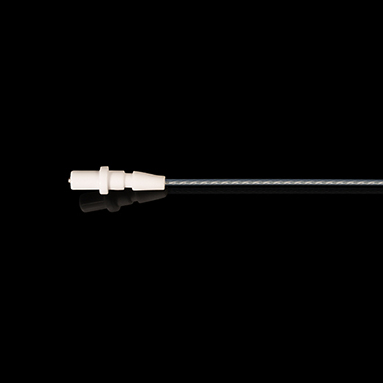

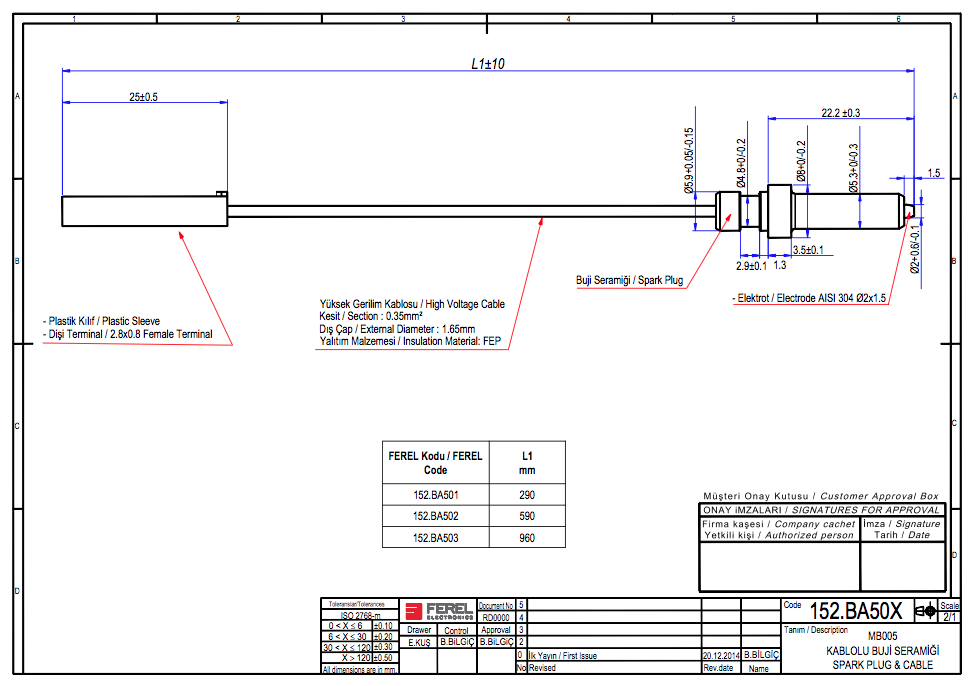

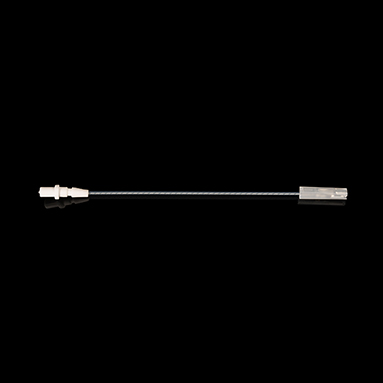

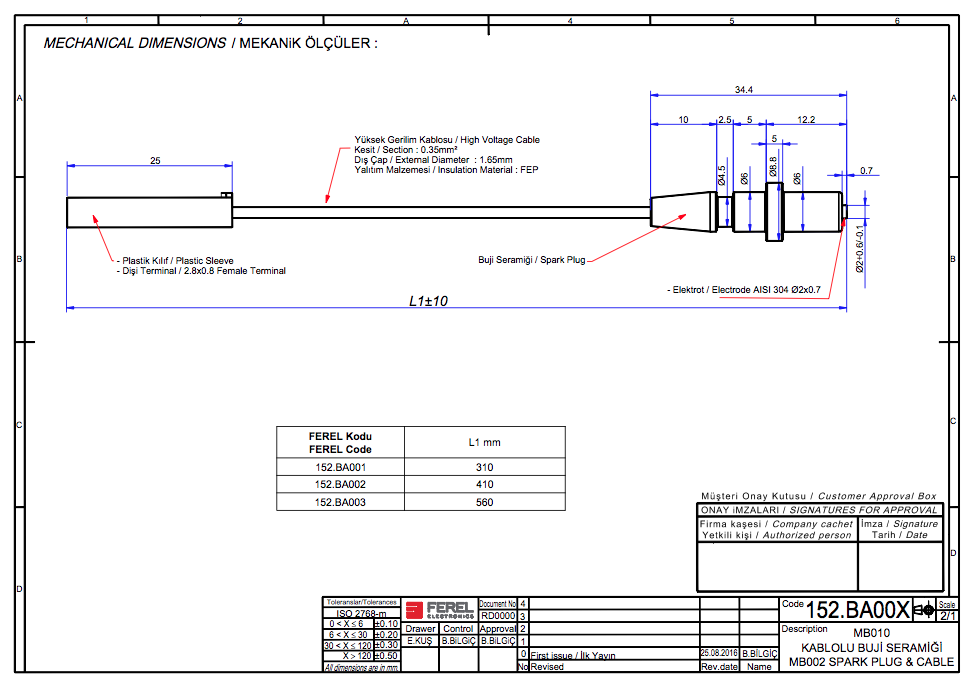

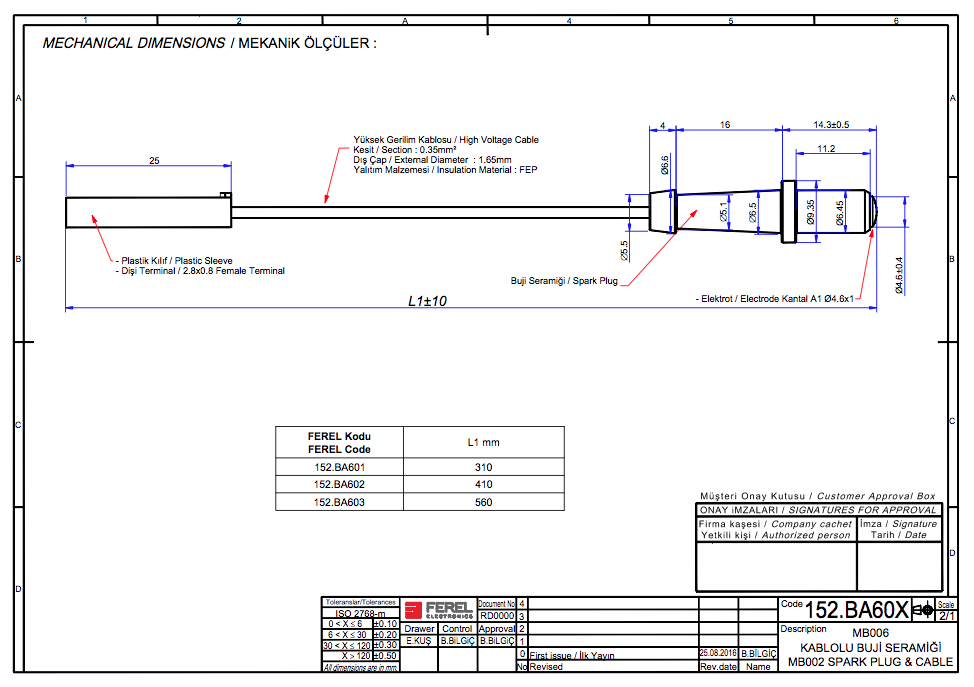

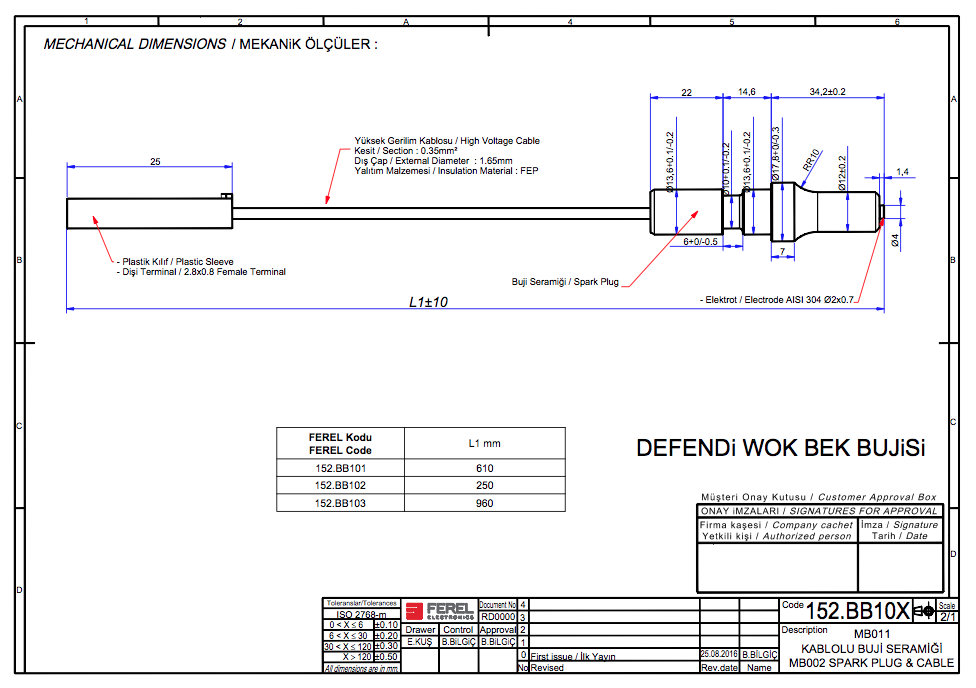

                        SPARK PLUG

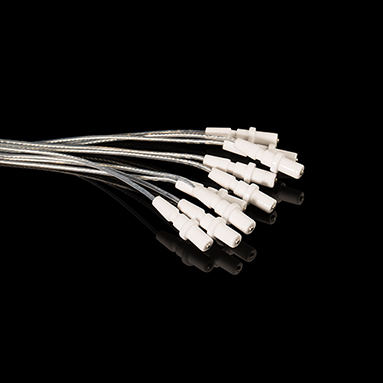

                          Spark Plug
                          Ceramic:
                          Alumina %96 (Al2O3)
                          Electrode:
                          AISI 304 or KANTHAL D
                          Montage:
                          Lock spring or spark plug fixing plate
                          Output:
                          With or without cable
                          Terminal:
                          2.8x0.8 jut terminal (on demand 2.8x0.5 jut terminal)
                          Cable:
                          FEP, PFA, PTFE or glass latticed silicone cable (silicone plated glassfiber latticed tube and additional heat insulation)
                          Terminal cover:
                          UL94-V2 (veya V0)
